Spring 整合 MyBatis 原理

基本流程：

使用 MapperScannerRegistrar 扫包并
- 根据 MapperScan 信息，注入一个 MapperScannerConfigurer
- 在 Mapper 的 BeanDefinition 加载后，实例化之前修改注入类型为 MapperFactoryBean 。
使用 MapperFactoryBean 为每个 Mapper 接口生成 JDK 的动态代理 MapperProxy 。

核心类：

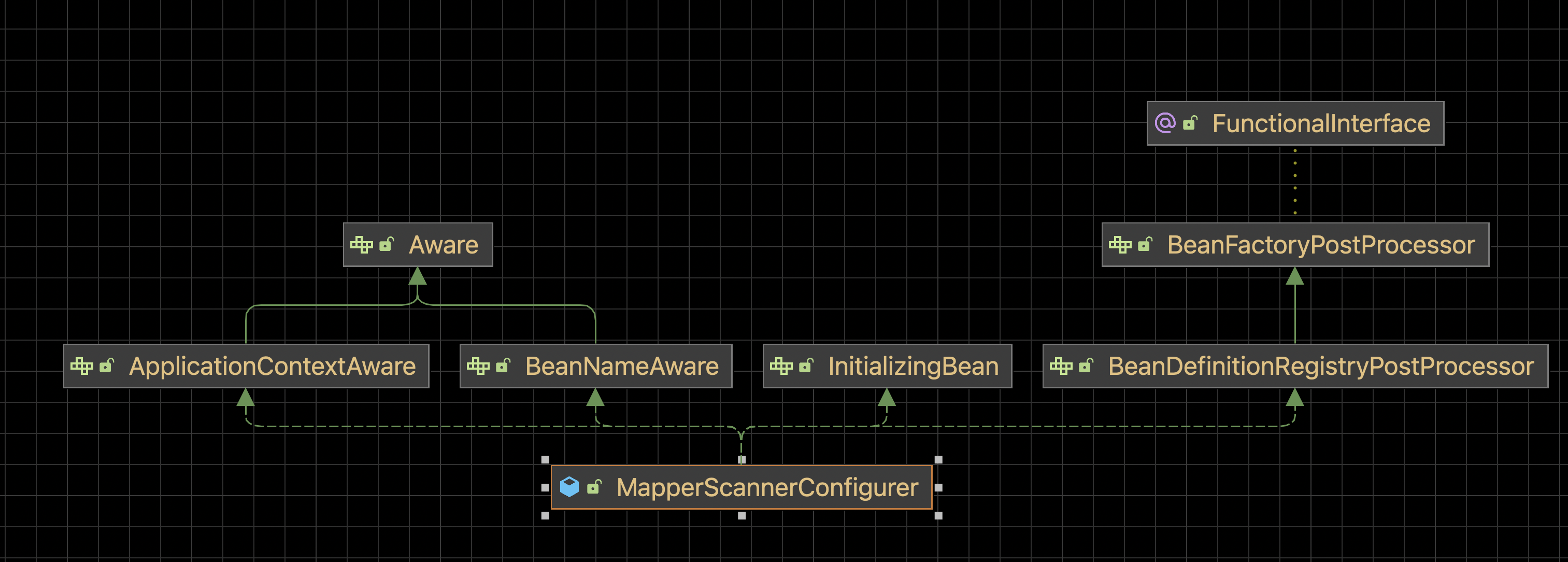

MapperScannerConfigurer

MapperFactoryBean

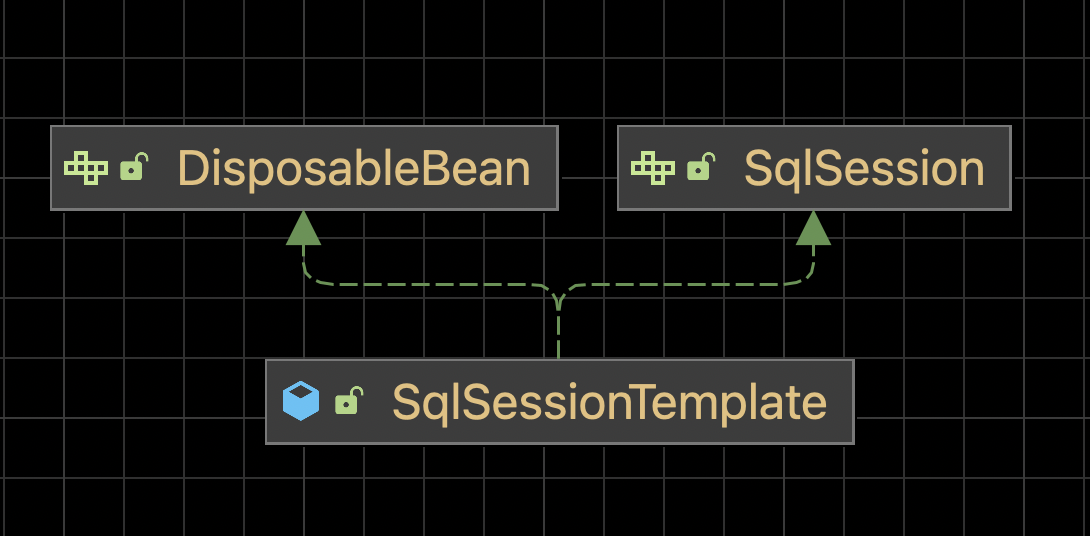

SqlSessionTemplate

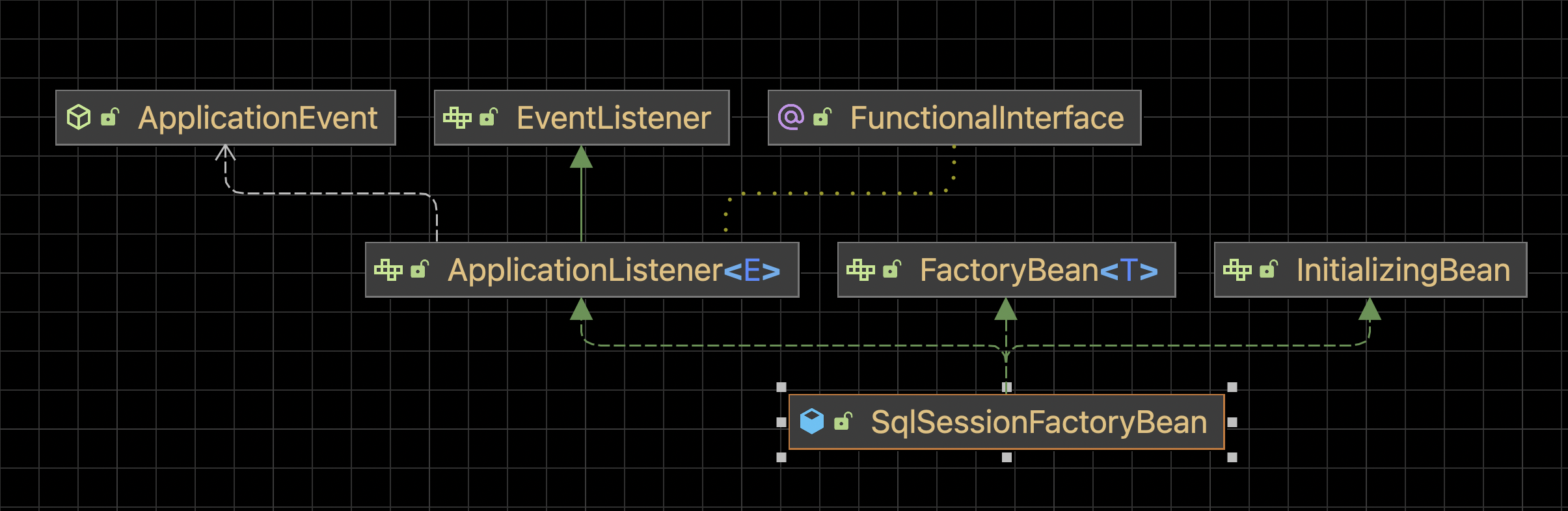

SqlSessionFactoryBean

时序图

入口

org.mybatis.spring.annotation.MapperScan

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import(MapperScannerRegistrar.class) (1)
@Repeatable(MapperScans.class) (2)
public @interface MapperScan {
   // ...
}

org.mybatis.spring.annotation.MapperScans

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import(MapperScannerRegistrar.RepeatingRegistrar.class) (3)
public @interface MapperScans {
   // ...
}

1	导入 `Mapper` 扫描注入器
2	重复标注会生成 `MapperScans` 注解
3	导入批量的 `Mapper` 扫描注入器

org.mybatis.spring.annotation.MapperScannerRegistrar.RepeatingRegistrar#registerBeanDefinitions

public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata,
                                    BeanDefinitionRegistry registry) {
    AnnotationAttributes mapperScansAttrs = AnnotationAttributes
        .fromMap(importingClassMetadata.getAnnotationAttributes(MapperScans.class.getName()));
    if (mapperScansAttrs != null) {
        AnnotationAttributes[] annotations = mapperScansAttrs.getAnnotationArray("value");
        for (int i = 0; i < annotations.length; i++) {
            // 遍历注入，和 MapperScan 一样
            registerBeanDefinitions(importingClassMetadata, annotations[i], registry,
                generateBaseBeanName(importingClassMetadata, i));
        }
    }
}

`Mapper` 注入器

org.mybatis.spring.annotation.MapperScannerRegistrar#registerBeanDefinitions

public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
    AnnotationAttributes mapperScanAttrs = AnnotationAttributes
        .fromMap(importingClassMetadata.getAnnotationAttributes(MapperScan.class.getName()));
    if (mapperScanAttrs != null) {
        registerBeanDefinitions(importingClassMetadata, mapperScanAttrs, registry,
            generateBaseBeanName(importingClassMetadata, 0));
    }
}

解析 MapperScan 注解的属性，注入 MapperScannerConfigurer

void registerBeanDefinitions(AnnotationMetadata annoMeta, AnnotationAttributes annoAttrs,
                             BeanDefinitionRegistry registry, String beanName) {

    BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(MapperScannerConfigurer.class);
    builder.addPropertyValue("processPropertyPlaceHolders", true);

    // annoAttrs MapperScan 注解属性
    Class<? extends Annotation> annotationClass = annoAttrs.getClass("annotationClass");
    if (!Annotation.class.equals(annotationClass)) {
        builder.addPropertyValue("annotationClass", annotationClass);
    }

    Class<?> markerInterface = annoAttrs.getClass("markerInterface");
    if (!Class.class.equals(markerInterface)) {
        builder.addPropertyValue("markerInterface", markerInterface);
    }

    Class<? extends BeanNameGenerator> generatorClass = annoAttrs.getClass("nameGenerator");
    if (!BeanNameGenerator.class.equals(generatorClass)) {
        builder.addPropertyValue("nameGenerator", BeanUtils.instantiateClass(generatorClass));
    }

    Class<? extends MapperFactoryBean> mapperFactoryBeanClass = annoAttrs.getClass("factoryBean");
    if (!MapperFactoryBean.class.equals(mapperFactoryBeanClass)) {
        builder.addPropertyValue("mapperFactoryBeanClass", mapperFactoryBeanClass);
    }

    String sqlSessionTemplateRef = annoAttrs.getString("sqlSessionTemplateRef");
    if (StringUtils.hasText(sqlSessionTemplateRef)) {
        builder.addPropertyValue("sqlSessionTemplateBeanName", annoAttrs.getString("sqlSessionTemplateRef"));
    }

    String sqlSessionFactoryRef = annoAttrs.getString("sqlSessionFactoryRef");
    if (StringUtils.hasText(sqlSessionFactoryRef)) {
        builder.addPropertyValue("sqlSessionFactoryBeanName", annoAttrs.getString("sqlSessionFactoryRef"));
    }

    List<String> basePackages = new ArrayList<>();
    basePackages.addAll(
        Arrays.stream(annoAttrs.getStringArray("value")).filter(StringUtils::hasText).collect(Collectors.toList()));

    basePackages.addAll(Arrays.stream(annoAttrs.getStringArray("basePackages")).filter(StringUtils::hasText)
        .collect(Collectors.toList()));

    basePackages.addAll(Arrays.stream(annoAttrs.getClassArray("basePackageClasses")).map(ClassUtils::getPackageName)
        .collect(Collectors.toList()));

    // 未配置，使用 MapperScans 所在包
    if (basePackages.isEmpty()) {
        basePackages.add(getDefaultBasePackage(annoMeta));
    }

    String lazyInitialization = annoAttrs.getString("lazyInitialization");
    if (StringUtils.hasText(lazyInitialization)) {
        builder.addPropertyValue("lazyInitialization", lazyInitialization);
    }

    String defaultScope = annoAttrs.getString("defaultScope");
    if (!AbstractBeanDefinition.SCOPE_DEFAULT.equals(defaultScope)) {
        builder.addPropertyValue("defaultScope", defaultScope);
    }

    // , 拼接字符串
    builder.addPropertyValue("basePackage", StringUtils.collectionToCommaDelimitedString(basePackages));

    // beanName is `cc.implicated.demo.MybatisDemoApplication#MapperScannerRegistrar#0`
    registry.registerBeanDefinition(beanName, builder.getBeanDefinition());

}

注入 `Mapper` 接口

MapperScannerConfigurer 实现了 BeanDefinitionRegistryPostProcessor 接口，会在 BeanDefinition 加载后，实例化之前执行 postProcessBeanDefinitionRegistry 方法。

org.mybatis.spring.mapper.MapperScannerConfigurer#postProcessBeanDefinitionRegistry

public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
    // 后置处理器 在 BeanDefinition 加载后，实例化之前执行

    // 解析 MapperScan 属性中的占位符，默认 true
    if (this.processPropertyPlaceHolders) {
        processPropertyPlaceHolders();
    }

    // mapper 扫描器
    ClassPathMapperScanner scanner = new ClassPathMapperScanner(registry);
    // 是否要将 Mapper 接口添加到 Configuration 全局配置对象中
    scanner.setAddToConfig(this.addToConfig);
    // 设置 MapperScan 中的属性
    scanner.setAnnotationClass(this.annotationClass);
    scanner.setMarkerInterface(this.markerInterface);
    scanner.setSqlSessionFactory(this.sqlSessionFactory);
    scanner.setSqlSessionTemplate(this.sqlSessionTemplate);
    scanner.setSqlSessionFactoryBeanName(this.sqlSessionFactoryBeanName);
    scanner.setSqlSessionTemplateBeanName(this.sqlSessionTemplateBeanName);
    scanner.setResourceLoader(this.applicationContext);
    scanner.setBeanNameGenerator(this.nameGenerator);
    scanner.setMapperFactoryBeanClass(this.mapperFactoryBeanClass);
    if (StringUtils.hasText(lazyInitialization)) {
        scanner.setLazyInitialization(Boolean.valueOf(lazyInitialization));
    }
    if (StringUtils.hasText(defaultScope)) {
        scanner.setDefaultScope(defaultScope);
    }
    // 添加扫描过滤器
    scanner.registerFilters();
    // 扫描 and 加载 bean definition
    scanner.scan(
        StringUtils.tokenizeToStringArray(this.basePackage,
            ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS));
}

修改加载的 `BeanDefinition`

org.mybatis.spring.mapper.ClassPathMapperScanner#doScan

public Set<BeanDefinitionHolder> doScan(String... basePackages) {
    // 调用父类的doScan方法，扫描并加载 bean
    Set<BeanDefinitionHolder> beanDefinitions = super.doScan(basePackages);

    if (beanDefinitions.isEmpty()) {
        LOGGER.warn(() -> "No MyBatis mapper was found in '" + Arrays.toString(basePackages)
            + "' package. Please check your configuration.");
    } else {
        // 修改加载的 Bean Definition
        processBeanDefinitions(beanDefinitions); (1)
    }

    return beanDefinitions;
}

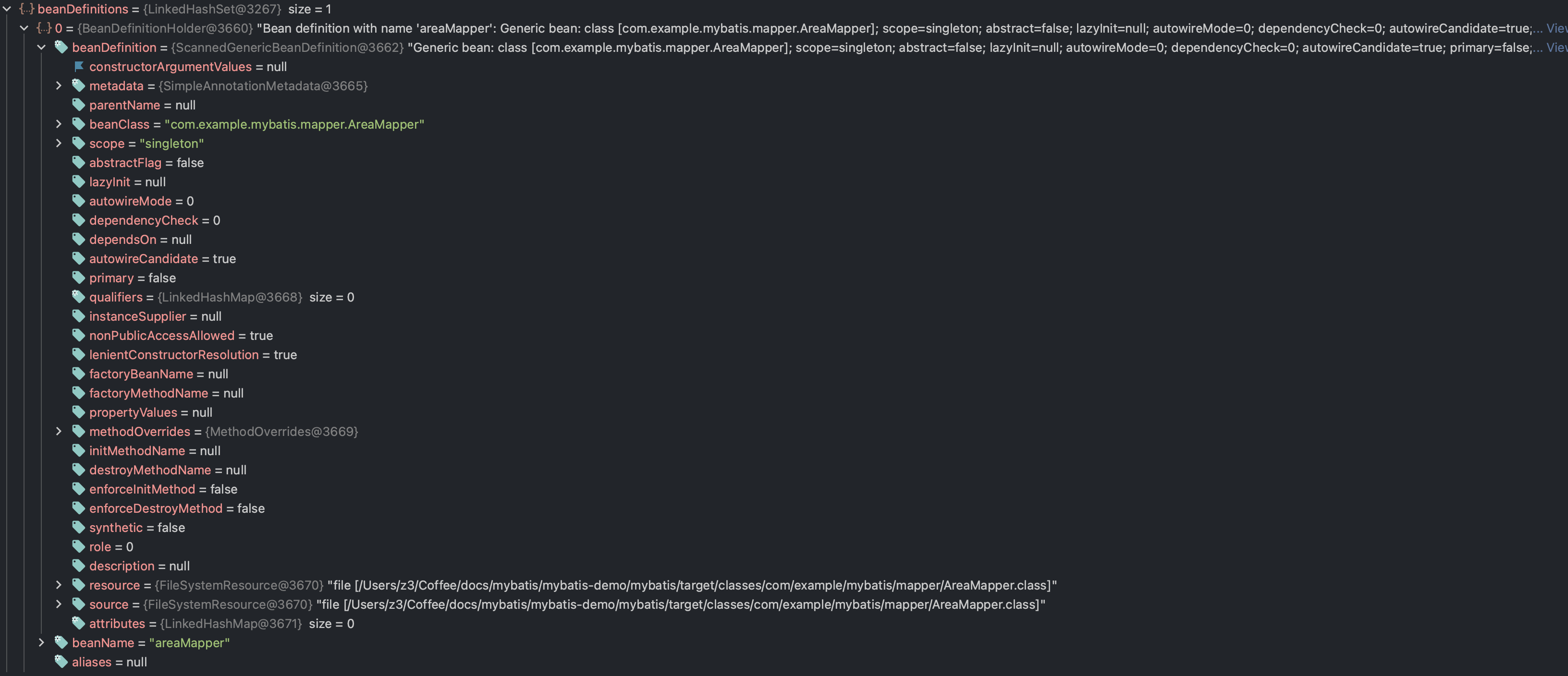

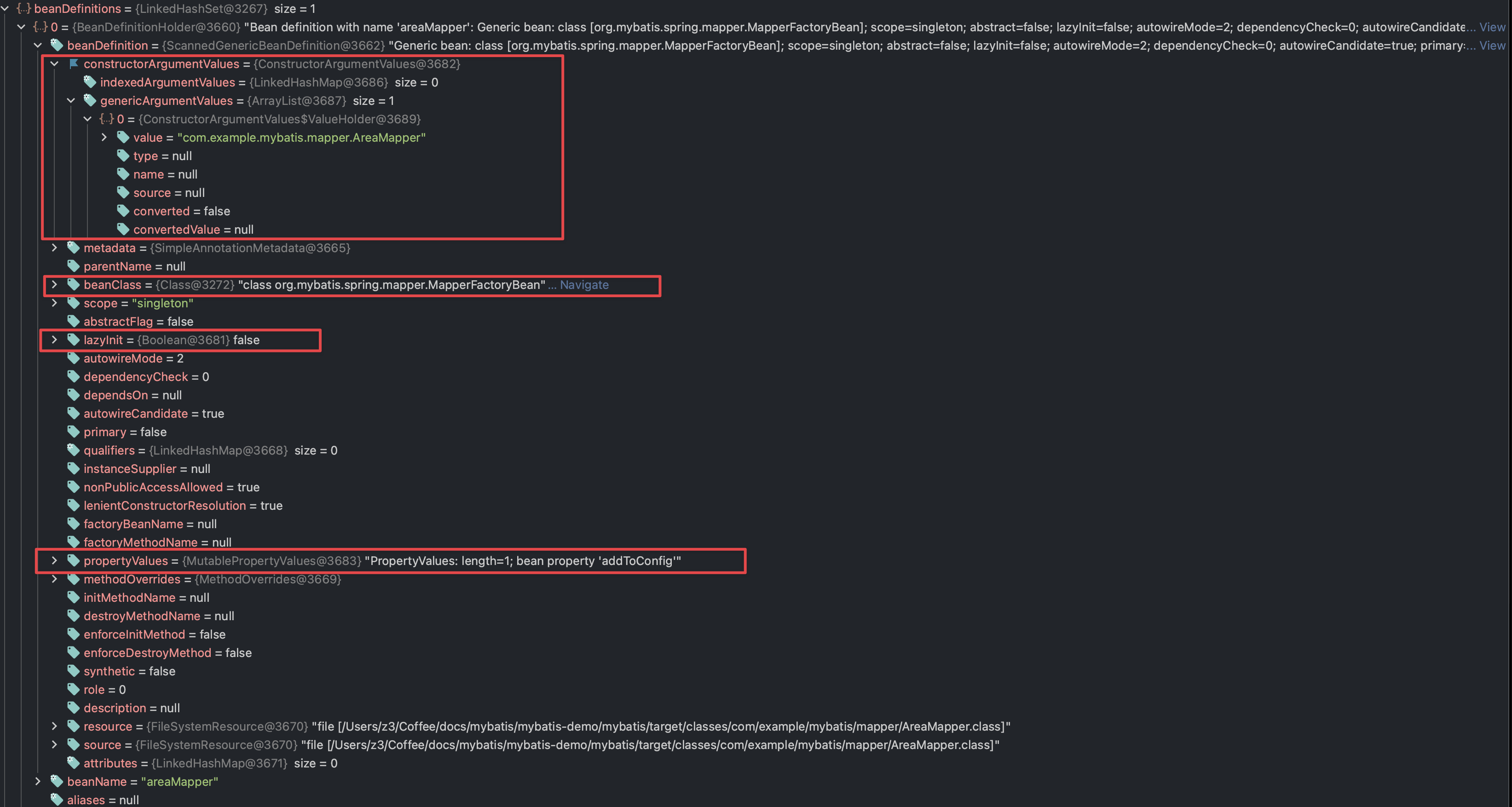

1	核心处理逻辑处理前处理后

org.mybatis.spring.mapper.ClassPathMapperScanner#processBeanDefinitions

private void processBeanDefinitions(Set<BeanDefinitionHolder> beanDefinitions) {
    AbstractBeanDefinition definition;
    BeanDefinitionRegistry registry = getRegistry();
    // 修改全部的 BeanDefinition
    for (BeanDefinitionHolder holder : beanDefinitions) {
        definition = (AbstractBeanDefinition) holder.getBeanDefinition();
        boolean scopedProxy = false;

        if (ScopedProxyFactoryBean.class.getName().equals(definition.getBeanClassName())) {
            definition =
                (AbstractBeanDefinition) Optional.ofNullable(((RootBeanDefinition) definition).getDecoratedDefinition())
                    .map(BeanDefinitionHolder::getBeanDefinition)
                    .orElseThrow(() ->
                        new IllegalStateException("The target bean definition of scoped proxy bean not found. " +
                            "Root bean definition[" + holder + "]"));
            scopedProxy = true;
        }

        // 获取原类型
        String beanClassName = definition.getBeanClassName();
        LOGGER.debug(() ->
            "Creating MapperFactoryBean with name '" + holder.getBeanName() + "' and '" + beanClassName + "' " +
                "mapperInterface");

        // 设置 MapperFactoryBean<T> 构造器参数 mapperInterface，指定泛型
        // the mapper interface is the original class of the bean
        // but, the actual class of the bean is MapperFactoryBean
        definition.getConstructorArgumentValues().addGenericArgumentValue(beanClassName); // issue #59

        // 修改 beanClass 为 org.mybatis.spring.mapper.MapperFactoryBean
        definition.setBeanClass(this.mapperFactoryBeanClass); (1)

        // 是否要将接口添加到 Configuration 全局配置对象中，默认为 True
        definition.getPropertyValues().add("addToConfig", this.addToConfig);

        // Attribute for MockitoPostProcessor
        // https://github.com/mybatis/spring-boot-starter/issues/475
        definition.setAttribute(FACTORY_BEAN_OBJECT_TYPE, beanClassName);

        // 是否指定了 SqlSessionFactory
        boolean explicitFactoryUsed = false;

        // 添加 sqlSessionFactory
        // SqlSessionDaoSupport.setSqlSessionFactory()
        if (StringUtils.hasText(this.sqlSessionFactoryBeanName)) {
            definition.getPropertyValues()
                .add("sqlSessionFactory", new RuntimeBeanReference(this.sqlSessionFactoryBeanName));
            explicitFactoryUsed = true;
        } else if (this.sqlSessionFactory != null) {
            definition.getPropertyValues()
                .add("sqlSessionFactory", this.sqlSessionFactory);
            explicitFactoryUsed = true;
        }

        // 添加 sqlSessionTemplate
        if (StringUtils.hasText(this.sqlSessionTemplateBeanName)) {
            // sqlSessionTemplate 覆盖 sqlSessionFactory
            if (explicitFactoryUsed) {
                LOGGER.warn(() -> "Cannot use both: sqlSessionTemplate and sqlSessionFactory together. " +
                    "sqlSessionFactory is ignored.");
            }
            definition.getPropertyValues()
                .add("sqlSessionTemplate", new RuntimeBeanReference(this.sqlSessionTemplateBeanName));
            explicitFactoryUsed = true;
        } else if (this.sqlSessionTemplate != null) {
            if (explicitFactoryUsed) {
                LOGGER.warn(() -> "Cannot use both: sqlSessionTemplate and sqlSessionFactory together. " +
                    "sqlSessionFactory is ignored.");
            }
            definition.getPropertyValues()
                .add("sqlSessionTemplate", this.sqlSessionTemplate);
            explicitFactoryUsed = true;
        }

        // 上面没有找到对应的 SqlSessionFactory 或者 sqlSessionTemplate，则指定 mapper 通过类型注入
        // 注入方式 by type （全局唯一）
        if (!explicitFactoryUsed) {
            LOGGER.debug(() -> "Enabling autowire by type for MapperFactoryBean with name '" + holder.getBeanName() + "'.");
            definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);
        }

        definition.setLazyInit(lazyInitialization);

        if (scopedProxy) {
            continue;
        }

        if (ConfigurableBeanFactory.SCOPE_SINGLETON.equals(definition.getScope()) && defaultScope != null) {
            definition.setScope(defaultScope);
        }

        // 非单例
        if (!definition.isSingleton()) {
            BeanDefinitionHolder proxyHolder = ScopedProxyUtils.createScopedProxy(holder, registry, true);
            if (registry.containsBeanDefinition(proxyHolder.getBeanName())) {
                registry.removeBeanDefinition(proxyHolder.getBeanName());
            }
            registry.registerBeanDefinition(proxyHolder.getBeanName(), proxyHolder.getBeanDefinition());
        }

    }
}

1	关键步骤，将 `Mapper` 接口注入到 `Spring` 容器中的类型修改 `MapperFactoryBean`

`MapperFactoryBean`

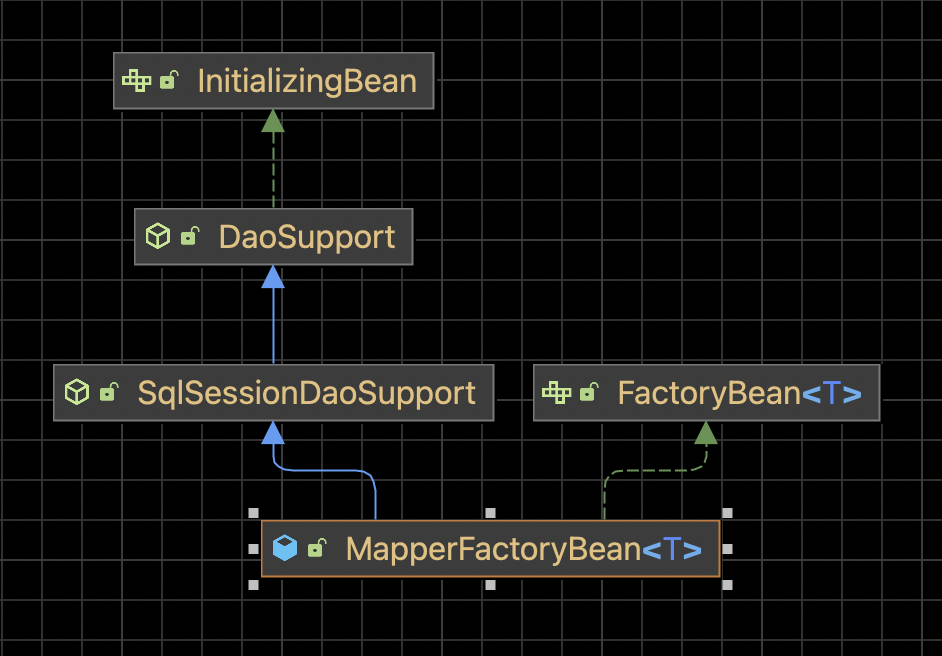

MapperFactoryBean 实现了 FactoryBean<Object> 接口。

在注册 MapperFactoryBean 时，会把 getObject() 方法返回的对象注入到 Spring 容器中。

org.mybatis.spring.mapper.MapperFactoryBean#getObject

public T getObject() throws Exception {
    // 从 org.apache.ibatis.session.Configuration#mapperRegistry#knownMappers 中返回 MapperProxy代理对象
    return getSqlSession().getMapper(this.mapperInterface); (1)
}

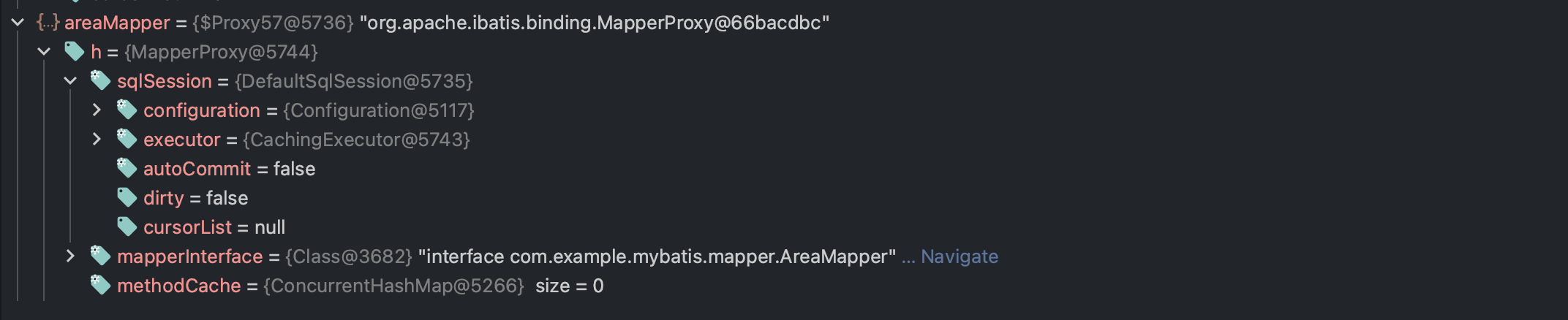

1	最终注入容器的是一个 `MapperProxy` 对象 MapperProxy

`getSqlSession()`

org.mybatis.spring.support.SqlSessionDaoSupport#getSqlSession

public SqlSession getSqlSession() {
    return this.sqlSessionTemplate; (1)
}

1	返回一个 `SqlSession` 类型的对象 `SqlSessionTemplate`

org.springframework.cloud.openfeign.MapperFactoryBean#loadBalance

public void setSqlSessionFactory(SqlSessionFactory sqlSessionFactory) {
    // sqlSessionTemplate 覆盖 sqlSessionFactory
  if (this.sqlSessionTemplate == null || sqlSessionFactory != this.sqlSessionTemplate.getSqlSessionFactory()) {
    this.sqlSessionTemplate = createSqlSessionTemplate(sqlSessionFactory); (1)
  }
}

1	使用 `SqlSessionFactory` 初始化 `SqlSessionTemplate` org.springframework.cloud.openfeign.MapperFactoryBean#get `protected SqlSessionTemplate createSqlSessionTemplate( SqlSessionFactory sqlSessionFactory) { return new SqlSessionTemplate(sqlSessionFactory); }`

`getMapper()`

getMapper 方法中调用 Configuration#getMapper() 方法，最终得到返回的 MapperProxy 对象注入到 SpringContext 中。

org.mybatis.spring.SqlSessionTemplate#getMapper

public <T> T getMapper(Class<T> type) {
    return getConfiguration().getMapper(type, this); (1)
}

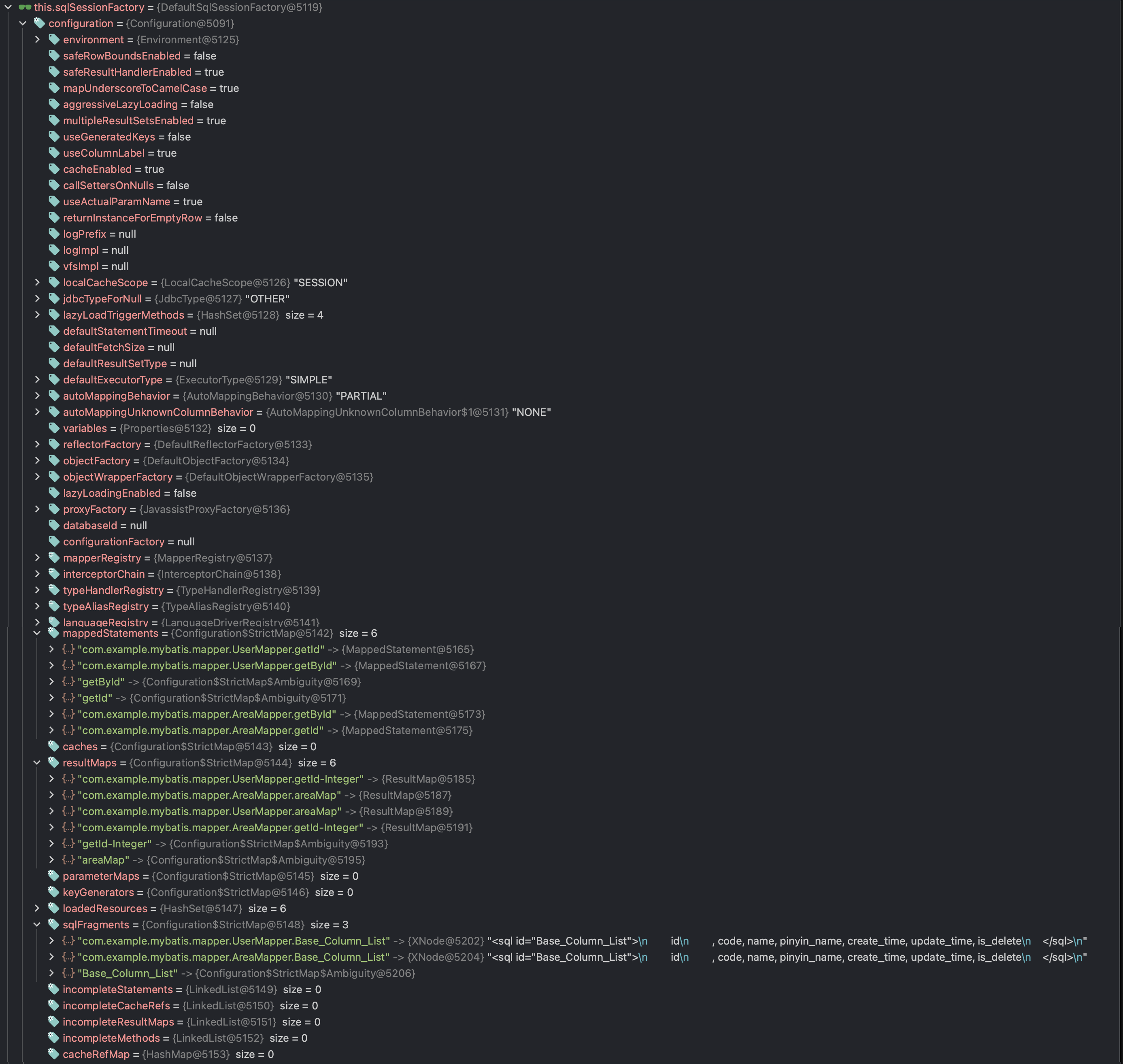

1	保存在 `Configuration` 全局对象中 Configuration

SqlSessionFactoryBean

SqlSessionFactoryBean 实现了 FactoryBean<Object> 接口和 InitializingBean 接口。

初始化

SqlSessionFactoryBean 一般是手动注入，它内部持有了 Mybatis 的全局配置对象 Configuration 。

org.mybatis.spring.SqlSessionFactoryBean#afterPropertiesSet

public void afterPropertiesSet() throws Exception {
    notNull(dataSource, "Property 'dataSource' is required");
    notNull(sqlSessionFactoryBuilder, "Property 'sqlSessionFactoryBuilder' is required");
    state((configuration == null && configLocation == null) || !(configuration != null && configLocation != null),
        "Property 'configuration' and 'configLocation' can not specified with together");

    this.sqlSessionFactory = buildSqlSessionFactory(); (1)
}

1	代替了 `org.apache.ibatis.session.SqlSessionFactoryBuilder#build` 方法。

org.mybatis.spring.SqlSessionFactoryBean#buildSqlSessionFactory

protected SqlSessionFactory buildSqlSessionFactory() throws Exception {

    final Configuration targetConfiguration;

    XMLConfigBuilder xmlConfigBuilder = null;
    // 加载 org.apache.ibatis.session.Configuration
    // 1. 已存在 org.apache.ibatis.session.Configuration
    if (this.configuration != null) {
        targetConfiguration = this.configuration;
        if (targetConfiguration.getVariables() == null) {
            targetConfiguration.setVariables(this.configurationProperties);
        } else if (this.configurationProperties != null) {
            targetConfiguration.getVariables().putAll(this.configurationProperties);
        }
    }
    // 2. 配置了 mybatis-config.xml 配置文件
    else if (this.configLocation != null) {
        xmlConfigBuilder = new XMLConfigBuilder(this.configLocation.getInputStream(), null,
            this.configurationProperties);
        targetConfiguration = xmlConfigBuilder.getConfiguration();
    }
    // 3. 都未指定，创建一个 Configuration 对象
    else {
        LOGGER.debug(
            () -> "Property 'configuration' or 'configLocation' not specified, using default MyBatis " +
                "Configuration");
        targetConfiguration = new Configuration();
        Optional.ofNullable(this.configurationProperties).ifPresent(targetConfiguration::setVariables);
    }

    // 注册 ObjectFactory
    Optional.ofNullable(this.objectFactory).ifPresent(targetConfiguration::setObjectFactory);
    // 注册 ObjectWrapperFactory
    Optional.ofNullable(this.objectWrapperFactory).ifPresent(targetConfiguration::setObjectWrapperFactory);
    // 注册 VFS
    Optional.ofNullable(this.vfs).ifPresent(targetConfiguration::setVfsImpl);

    // 类型别名
    // 它只与XML配置相关，其存在只是为了减少完全限定类名的冗余键入
    if (hasLength(this.typeAliasesPackage)) {
        scanClasses(this.typeAliasesPackage, this.typeAliasesSuperType).stream()
            // 过滤掉匿名类
            .filter(clazz -> !clazz.isAnonymousClass())
            // 过滤接口
            .filter(clazz -> !clazz.isInterface())
            // 过滤掉内部类
            .filter(clazz -> !clazz.isMemberClass())
            // 注册别名
            .forEach(targetConfiguration.getTypeAliasRegistry()::registerAlias);
    }
    // 单个类型别名
    if (!isEmpty(this.typeAliases)) {
        Stream.of(this.typeAliases).forEach(typeAlias -> {
            targetConfiguration.getTypeAliasRegistry().registerAlias(typeAlias);
            LOGGER.debug(() -> "Registered type alias: '" + typeAlias + "'");
        });
    }

    // 注册插件
    if (!isEmpty(this.plugins)) {
        Stream.of(this.plugins).forEach(plugin -> {
            targetConfiguration.addInterceptor(plugin);
            LOGGER.debug(() -> "Registered plugin: '" + plugin + "'");
        });
    }

    // 类型转换器
    // JDBCType 与 JAVAType 互转
    if (hasLength(this.typeHandlersPackage)) {
        scanClasses(this.typeHandlersPackage, TypeHandler.class).stream().filter(clazz -> !clazz.isAnonymousClass())
            // 过滤接口
            .filter(clazz -> !clazz.isInterface())
            // 过滤抽象类
            .filter(clazz -> !Modifier.isAbstract(clazz.getModifiers()))
            // 注册类型转换器
            .forEach(targetConfiguration.getTypeHandlerRegistry()::register);
    }
    // 单个类型转换器
    if (!isEmpty(this.typeHandlers)) {
        Stream.of(this.typeHandlers).forEach(typeHandler -> {
            targetConfiguration.getTypeHandlerRegistry().register(typeHandler);
            LOGGER.debug(() -> "Registered type handler: '" + typeHandler + "'");
        });
    }

    // 枚举转换器
    targetConfiguration.setDefaultEnumTypeHandler(defaultEnumTypeHandler);

    if (!isEmpty(this.scriptingLanguageDrivers)) {
        Stream.of(this.scriptingLanguageDrivers).forEach(languageDriver -> {
            targetConfiguration.getLanguageRegistry().register(languageDriver);
            LOGGER.debug(() -> "Registered scripting language driver: '" + languageDriver + "'");
        });
    }
    Optional.ofNullable(this.defaultScriptingLanguageDriver)
        .ifPresent(targetConfiguration::setDefaultScriptingLanguage);

    // 数据库id
    if (this.databaseIdProvider != null) {
        try {
            targetConfiguration.setDatabaseId(this.databaseIdProvider.getDatabaseId(this.dataSource));
        } catch (SQLException e) {
            throw new NestedIOException("Failed getting a databaseId", e);
        }
    }

    // 缓存
    Optional.ofNullable(this.cache).ifPresent(targetConfiguration::addCache);

    // 如果不为空，解析 mybatis 配置
    if (xmlConfigBuilder != null) {
        try {
            xmlConfigBuilder.parse();
            LOGGER.debug(() -> "Parsed configuration file: '" + this.configLocation + "'");
        } catch (Exception ex) {
            throw new NestedIOException("Failed to parse config resource: " + this.configLocation, ex);
        } finally {
            ErrorContext.instance().reset();
        }
    }

    // 设置 MyBatis Environment
    // MyBatis 支持多数据源，但每个 sqlSessionFactory 只能选择一个
    // 多个数据源需要创建多个 SqlSessionFactory 实例
    targetConfiguration.setEnvironment(new Environment(
        // id，默认为 SqlSessionFactoryBean
        this.environment,
        // 事务管理器
        this.transactionFactory == null ? new SpringManagedTransactionFactory() : this.transactionFactory,
        // 数据源
        this.dataSource));

    // 注册 mapper.java 和 mapper.xml 文件
    if (this.mapperLocations != null) {
        if (this.mapperLocations.length == 0) {
            LOGGER.warn(() -> "Property 'mapperLocations' was specified but matching resources are not found.");
        } else {
            // 遍历全部 mapper 接口
            for (Resource mapperLocation : this.mapperLocations) {
                if (mapperLocation == null) {
                    continue;
                }
                try {
                    XMLMapperBuilder xmlMapperBuilder =
                        new XMLMapperBuilder(mapperLocation.getInputStream(), targetConfiguration,
                            mapperLocation.toString(), targetConfiguration.getSqlFragments());
                    // 解析 mapper.java 和 mapper.xml 文件
                    xmlMapperBuilder.parse();
                } catch (Exception e) {
                    throw new NestedIOException("Failed to parse mapping resource: '" + mapperLocation + "'", e);
                } finally {
                    ErrorContext.instance().reset();
                }
                LOGGER.debug(() -> "Parsed mapper file: '" + mapperLocation + "'");
            }
        }
    } else {
        LOGGER.debug(() -> "Property 'mapperLocations' was not specified.");
    }

    return this.sqlSessionFactoryBuilder.build(targetConfiguration); (1)
}

1	实际注入的是 `DefaultSqlSessionFactory` 。 org.apache.ibatis.session.SqlSessionFactoryBuilder#build `public SqlSessionFactory build(Configuration config) { return new DefaultSqlSessionFactory(config); }` DefaultSqlSessionFactory

注入 `SqlSessionFactory`

public SqlSessionFactory getObject() throws Exception {
    // 如果为空，则初始化
    if (this.sqlSessionFactory == null) {
        afterPropertiesSet();
    }

    return this.sqlSessionFactory;
}

Spring 整合 MyBatis 原理

时序图

入口

Mapper 注入器

注入 Mapper 接口

修改加载的 BeanDefinition

MapperFactoryBean

getSqlSession()

getMapper()

SqlSessionFactoryBean

初始化

注入 SqlSessionFactory

`Mapper` 注入器

注入 `Mapper` 接口

修改加载的 `BeanDefinition`

`MapperFactoryBean`

`getSqlSession()`

`getMapper()`

注入 `SqlSessionFactory`
